Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Condition: New

Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops

Showroom Location: None

Material: wooden cases

Weight: 600KG

Size: 1800*620*1800

Power: 220V /380V/460V - 50Hz/60Hz

Warranty: 1 Year

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

After-sales Service Provided: Video technical support, Online support

Application: Water Storage

Product name: Water Treatment System Processing Reverse Osmosis Plant

Type: Pure Water Treatment System

Usage: Automatic Operation

Capacity: 250L~10000L

Function: Water Purification Plant

Operation: 24 Hours Automatic Running

Certificazione: ISO9001 CE

RO membrane: Vontron4040

Advantage: 20 Years Experiences

Informazioni di base

Certificazione: ISO9001 CE

Termini di pagamento e spedizione

Packaging Details: wooden cases

Supply Ability: 30 Case/Cases per Month

Descrizione di prodotto

Products Description

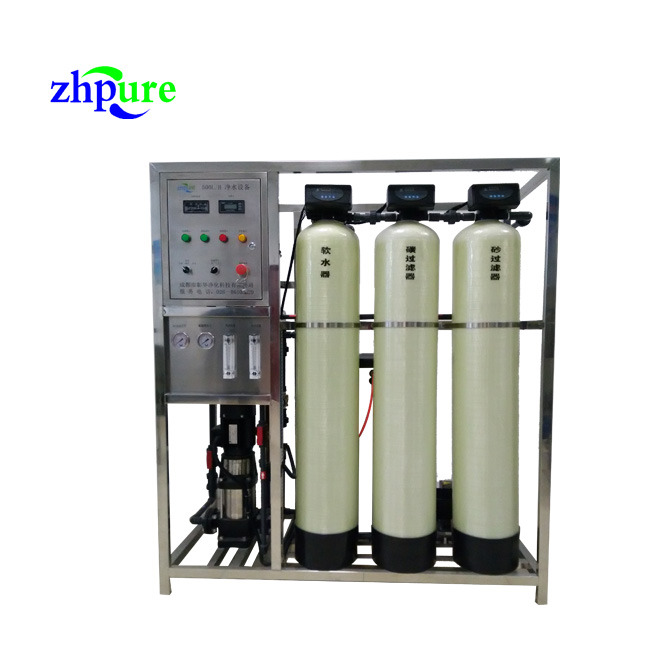

1000 L/H waste water ro system treatment plant

The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.

working process

Source Water → raw water pump → quartz sand filter → activated carbon filter → security filter →high pressure pump→reverse osmosis system → Uv sterilizer → water supply point

250--1000 liters per hour Main Parameters

Model	ZHP-RO-250	ZHP-RO-500	ZHP-RO-1000
Production capacity	250 L/Hr	500 L/Hr	1000 L/Hr
Power supply	AC380V 50HZ	AC380V 50HZ	AC380V 50HZ
Reverse osmosis (RO) membrane	USA DOW LCLE-4040 1PCS	USA DOW LCLE-4040 2PCS	USA DOW LCLE-4040 4PCS
Membrane housing	4040 1pcs SUS304	4040 2pcs SUS304	4040 4pcs SUS304
Raw water pump	CHL2-30 / 0.55KW	CHL2-30 / 0.55KW	CHL2-40 / 0.75KW
Quartz sand filter , activated Carbon filter	Ф200*1100mm FRP 2PCS	Ф250*1350mm FRP 2PCS	Ф300*1300mm FRP 2PCS
security filter	20″*5µm 1pcs	20″*5µm 1pcs	20″*5µm 1pcs
High pressure pump	CDL2-11 / 1.1KW 1set	CDL2-11 / 1.1KW 1set	CDL2-13 / 1.5KW 1set
Quartz sand	50kg	100kg	150kg
Activated Carbon	15kg	25kg	50kg

Details Images

It is one of the most advanced technologies to process water inthe world. The processed water with high purification, good taste can get rid of 100% bacteria. The salt can be eliminated from the water by more than 98%, highly up to the national standard.

It is widely used in foodstuff,pharmaceutical, chemical industry, electronic industry for terminal process. We have owned 1-20 Ton/h production capacity of design, development, and manufacturing. We also provide special specifications in advance.

The series of RO machines adopt imported PLC with Chinese touching screen automatically controled, with various protecting functions and high efficiency and safety grade.The machine could maintain operating automatically without the operator at present.It adopts 8040 series reverse osmosis menbrances from US company Hydeneng to ensure water quality .The parts are also whole imported to keep the machine to run steadily.

First stage pretreatment.(Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health

Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Third stage pretreatment (Resin softener)

Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

Fourth stage pretreatment (Micron filter)

Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the
turbidity reached 1 degree.

RO system

The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

Quartz sand filters

It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.

Active carbon filter

It can remove the pigment, smell and a large number of biological organisms in the water

Soften the water

It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside,it will protect the stainless steel from silica sand and carbon material,make the filters work much much longer than normal.

Certifications

Company Profile

Title goes here.

Chengdu Zhanghua Purification Tech Co., Ltd is an advanced water technology company, which integrated on the design,manufacturing, construction, commissioning and after-sales service of pure water, ultrapure water, reuse water and direct drinking water. Our Company gathers together science, industry and trade and provides professional and comprehensive service for our clients in the pre-program planning, project design, equipment manufacture and subsequent operation, etc. The products have been involved in lots of industries such as electronic semiconductor, LCD, optical photoelectric industry, photovoltaic industry, food, pharmaceutical industry, aerospace industry and other various fields

Why Choose Us

1、The design of a 15 year tradition of industrial pure water, ultra pure water equipment, water equipment manufacturing experience; 2、The strength of the production, service the world 500 strong enterprises 3、Proficiency in the use of the most advanced reverse osmosis, electro osmosis, ion exchange technology。 4、The company has thousands of square meters of production workshops, supplies adequate inventory, equipment out fast, 3-7 days to arrange the shipment. 5、 Quality assurance, thousands of sets of equipment running for 5 years without failure

Product packaging

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.

Our Service

1) The machines' quality that we sold will be guaranteed for 1 year.
2) We will give you long time technology supply.
3) We can dispatch our engineer to you for installing and debugging machines. Engineer's roundtrip tickets, accommodation, and your side travelling fee will be charged by you.
4)We can also supply you mounting process, so your engineers can fit and debug machines by themselves.

Customer Photos

Q1: How to choose the most suitable machine and get the final suitable price?
A1: For beverage bottle Filling Machine, you need to reply us the following questions:
1. What kind of product (carbonated or no carbonated beverage, juice or water) for filling?
2. What's the volume of the bottle(Can)?
3. Could you show us picture of your Bottle/can?
4. Could you send some bottle samples to us?
5. What capacity do you need for production?

Q2: Do you have videos or manual for us to know the machine better?
A2: Yes, of course. Please email us and ask for it. We will send you soon.

Q3: How about your machine's quality?
A3: Every machine is applied with CE certificate,ISO 9001 certificate, highly meets requirement of TUV, made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.

Q4: What's the delivery time?
A4: Depending on your order: for whole production line it is 40~60 workdays. bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, cansealing machine will be 30~40 days. Other simple equipment will be around 20 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.

Q5: Is there MOQ for your machine?
A5: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.

Q6: How to install the machine?
A6: Please do not worry. We will send you detailed video and instruction manual for your reference. Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well, however, customer needs to pay round air tickets, hotel and service expenses.

Q7: What is your warranty for the machine?
A7: The valid time for the warranty of our machine is one year; we will provide the spare parts to the buyer total for free in one year, which do not include those damaged or broken parts caused by human. And the vulnerable and consumptive spare parts are also out of the range of guarantee.Buyer needs to pay for the shipping or air charges.
